OGM-G Example#
This code tests OGM-G which is the state-of-the-art method that reduces gradient norm square respect to initial function value gap for L-smooth convex functions. Introduced in “Optimizing the Efficiency of First-Order Methods for Decreasing the Gradient of Smooth Convex Functions” by Donghwan Kim, Jeffrey A Fessler (2021).
Import the required libraries#
import pepflow as pf
import numpy as np
import sympy as sp
import matplotlib.pyplot as plt
import itertools
import functools
from IPython.display import display
Define the functions#
L = pf.Parameter("L")
f = pf.SmoothConvexFunction(is_basis=True, tags=["f"], L=L)
Write a function to return the PEPContext associated with OGM-G#
@functools.cache
def theta(i, N):
if i == -1:
return 0
if i == N:
return 1 / sp.S(2) * (sp.S(1) + sp.sqrt(8 * theta(N - 1, N) ** 2 + sp.S(1)))
return 1 / sp.S(2) * (sp.S(1) + sp.sqrt(4 * theta(i - 1, N) ** 2 + sp.S(1)))
def reverse_theta(i, N):
return theta(N - i, N)
def make_ctx_ogm_g(
ctx_name: str, N: int | sp.Integer, stepsize: pf.Parameter
) -> pf.PEPContext:
ctx_ogm_g = pf.PEPContext(ctx_name).set_as_current()
x = pf.Vector(is_basis=True, tags=["x_0"])
z = x
z = z - stepsize * (reverse_theta(0, N) + 1) / 2 * f.grad(x)
z.add_tag(f"z_{1}")
f.set_stationary_point("x_star")
for i in range(1, N + 1):
y = x - stepsize * f.grad(x)
x = (reverse_theta(i + 1, N) / reverse_theta(i, N)) ** 4 * y + (
1 - (reverse_theta(i + 1, N) / reverse_theta(i, N)) ** 4
) * z
x.add_tag(f"x_{i}")
z = z - stepsize * reverse_theta(i, N) * f.grad(x)
z.add_tag(f"z_{i + 1}")
return ctx_ogm_g
Numerical evidence of convergence of OGM-G#
N = 5
R = pf.Parameter("R")
L_value = 1
R_value = 1
opt_values = []
for k in range(1, N):
ctx_plt = make_ctx_ogm_g(ctx_name=f"ctx_plt_{k}", N=k, stepsize=1 / L)
pb_plt = pf.PEPBuilder(ctx_plt)
pb_plt.add_initial_constraint(
(f(ctx_plt["x_0"]) - f(ctx_plt["x_star"])).le(R, name="initial_condition")
)
x_k = ctx_plt[f"x_{k}"]
pb_plt.set_performance_metric((f.grad(x_k)) ** 2)
result = pb_plt.solve(resolve_parameters={"L": L_value, "R": R_value})
opt_values.append(result.opt_value)
iters = np.arange(1, N)
analytical_values = [2 * L_value / reverse_theta(0, i) ** 2 for i in iters]

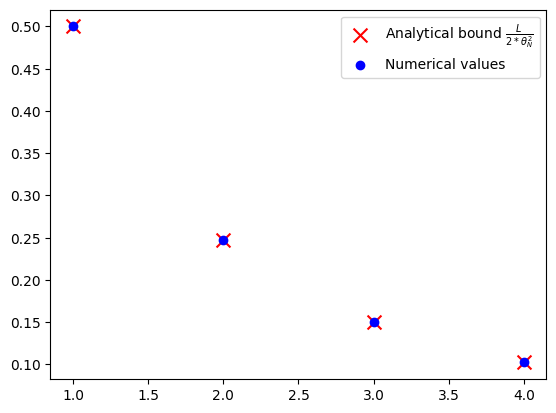

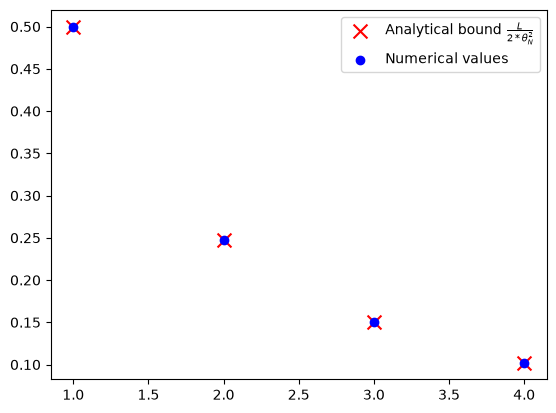

plt.scatter(
iters,
analytical_values,
color="red",
marker="x",
s=100,
label="Analytical bound $\\frac{L}{2*\\theta_N^2}$",
)
plt.scatter(iters, opt_values, color="blue", marker="o", label="Numerical values")
plt.legend()
<matplotlib.legend.Legend at 0x7f09e763f690>
Verification of convergence of OGM-G#
N = 2
ctx_prf = make_ctx_ogm_g(ctx_name="ctx_prf", N=N, stepsize=1 / L)
pb_prf = pf.PEPBuilder(ctx_prf)
pb_prf.add_initial_constraint(
(f(ctx_prf["x_0"]) - f(ctx_prf["x_star"])).le(R, name="initial_condition")
)
pb_prf.set_performance_metric((f.grad(ctx_prf[f"x_{N}"])) ** 2)
result = pb_prf.solve(resolve_parameters={"L": L_value, "R": R_value})
print(result.opt_value)
# Dual variables associated with the interpolations conditions of f with no relaxation
lamb_dense = result.get_scalar_constraint_dual_value_in_numpy(f)
0.2475766627276059
pf.launch_primal_interactive(
pb_prf, ctx_prf, resolve_parameters={"L": L_value, "R": R_value}
)
Dash app running on http://127.0.0.1:8050/
It turns out for OGM no further relaxation is needed. Now we store the results.
# Dual variable associated with the initial condition
tau_sol = result.dual_var_manager.dual_value("initial_condition")
# Dual variable associated with the interpolations conditions of f
lamb_sol = result.get_scalar_constraint_dual_value_in_numpy(f)
# Dual variable associated with the Gram matrix G
S_sol = result.get_gram_dual_matrix()
Verify closed form expression of \(\lambda\)#
def tag_to_index(tag, N=N):
"""This is a function that takes in a tag of an iterate and returns its index.
We index "x_star" as "N+1 where N is the last iterate.
"""
# Split the string on "_" and get the index
if (idx := tag.split("_")[1]).isdigit():
return int(idx)
elif idx == "star":
return N + 1
Print the values of \(\lambda\) obtained from the solver
lamb_sol.pprint()
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccc}
& x_0 & x_1 & x_2 & x_\star \\
\hline
x_0 & 0.0 & 0.382 & -0.0 & 0.0 \\x_1 & 0.0 & 0.0 & 1.0 & 0.0 \\x_2 & 0.134 & 0.618 & 0.0 & 0.248 \\x_\star & 0.0 & 0.0 & 0.0 & 0.0 \\
\end{array}
\end{split}\]
Consider proper candidate of closed form expression of \(\lambda\)
def lamb(tag_i, tag_j, N=N):
i = tag_to_index(tag_i)
j = tag_to_index(tag_j)
if i == N: # Additional constraint 1 (between x_★)
if j == 0:
return 1 / reverse_theta(1, N) ** 2 - 2 / reverse_theta(0, N) ** 2
elif j < N:
return 1 / reverse_theta(j + 1, N) ** 2 - 1 / reverse_theta(j, N) ** 2
elif j == N:
return 1 - lamb(f"x_{N - 1}", f"x_{N}")
if i < N and i + 1 == j: # Additional constraint 2 (consecutive)
return 1 / reverse_theta(i + 1, N) ** 2
if i == N and j == N + 1:
return 2 / reverse_theta(0, N) ** 2
return 0
lamb_cand = pf.pprint_labeled_matrix(
lamb, lamb_sol.row_names, lamb_sol.col_names, return_matrix=True
)
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccc}
& x_0 & x_1 & x_2 & x_\star \\
\hline
x_0 & 0.0 & 0.382 & 0.0 & 0.0 \\x_1 & 0.0 & 0.0 & 1.0 & 0.0 \\x_2 & 0.134 & 0.618 & 0.0 & 0.248 \\x_\star & 0.0 & 0.0 & 0.0 & 0.0 \\
\end{array}
\end{split}\]
Check whether our candidate of \(\lambda\) matches with solution
print(
"Did we guess the right closed form of lambda?",
np.allclose(lamb_cand, lamb_sol.matrix, atol=1e-4),
)
Did we guess the right closed form of lambda? True
Closed form expression of \(S\)#
S_sol.pprint()
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|ccccc}
& x_0 & \nabla f(x_0) & x_\star & \nabla f(x_1) & \nabla f(x_2) \\
\hline
x_0 & 0.0 & -0.0 & 0.0 & -0.0 & -0.0 \\\nabla f(x_0) & -0.0 & -0.0 & 0.0 & -0.0 & -0.0 \\x_\star & 0.0 & 0.0 & -0.0 & 0.0 & 0.0 \\\nabla f(x_1) & -0.0 & -0.0 & 0.0 & -0.0 & -0.0 \\\nabla f(x_2) & -0.0 & -0.0 & 0.0 & -0.0 & -0.0 \\
\end{array}
\end{split}\]
Interestestingly, \(S\) has a rank of 0.
rank = np.linalg.matrix_rank(np.round(S_sol.matrix, 3))
print(rank)
0
Symbolic calculation#
Assemble the RHS of the proof.
interp_scalar_sum = pf.Scalar.zero()
for x_i, x_j in itertools.product(ctx_prf.tracked_point(f), ctx_prf.tracked_point(f)):
if lamb(x_i.tag, x_j.tag) != 0:
interp_scalar_sum += lamb(x_i.tag, x_j.tag) * f.interp_ineq(x_i.tag, x_j.tag)
display(interp_scalar_sum)
\[\displaystyle 0+(1/2 + sqrt(5)/2)^(-2)*(f(x_1)-f(x_0)+\nabla f(x_1)*(x_0-(x_1))+1/2*L*\|\nabla f(x_0)-\nabla f(x_1)\|^2)+1*(f(x_2)-f(x_1)+\nabla f(x_2)*(x_1-(x_2))+1/2*L*\|\nabla f(x_1)-\nabla f(x_2)\|^2)+-2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2 + (1/2 + sqrt(5)/2)^(-2)*(f(x_0)-f(x_2)+\nabla f(x_0)*(x_2-x_0)+1/2*L*\|\nabla f(x_2)-\nabla f(x_0)\|^2)+1 - 1/(1/2 + sqrt(5)/2)^2*(f(x_1)-f(x_2)+\nabla f(x_1)*(x_2-(x_1))+1/2*L*\|\nabla f(x_2)-\nabla f(x_1)\|^2)+2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2*(f(x_\star)-f(x_2)+\nabla f(x_\star)*(x_2-x_\star)+1/2*L*\|\nabla f(x_2)-\nabla f(x_\star)\|^2)\]
RHS = interp_scalar_sum
display(RHS)
\[\displaystyle 0+(1/2 + sqrt(5)/2)^(-2)*(f(x_1)-f(x_0)+\nabla f(x_1)*(x_0-(x_1))+1/2*L*\|\nabla f(x_0)-\nabla f(x_1)\|^2)+1*(f(x_2)-f(x_1)+\nabla f(x_2)*(x_1-(x_2))+1/2*L*\|\nabla f(x_1)-\nabla f(x_2)\|^2)+-2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2 + (1/2 + sqrt(5)/2)^(-2)*(f(x_0)-f(x_2)+\nabla f(x_0)*(x_2-x_0)+1/2*L*\|\nabla f(x_2)-\nabla f(x_0)\|^2)+1 - 1/(1/2 + sqrt(5)/2)^2*(f(x_1)-f(x_2)+\nabla f(x_1)*(x_2-(x_1))+1/2*L*\|\nabla f(x_2)-\nabla f(x_1)\|^2)+2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2*(f(x_\star)-f(x_2)+\nabla f(x_\star)*(x_2-x_\star)+1/2*L*\|\nabla f(x_2)-\nabla f(x_\star)\|^2)\]
Assemble the LHS of the proof
x_0 = ctx_prf["x_0"]
x_N = ctx_prf[f"x_{N}"]
x_star = ctx_prf["x_star"]
LHS = 1 / L * (f.grad(x_N)) ** 2 - (2 / reverse_theta(0, N) ** 2) * (f(x_0) - f(x_star))
display(LHS)
\[\displaystyle 1/L*\|\nabla f(x_2)\|^2-2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2*(f(x_0)-f(x_\star))\]
diff = LHS - RHS
display(diff)
\[\displaystyle 1/L*\|\nabla f(x_2)\|^2-2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2*(f(x_0)-f(x_\star))-(0+(1/2 + sqrt(5)/2)^(-2)*(f(x_1)-f(x_0)+\nabla f(x_1)*(x_0-(x_1))+1/2*L*\|\nabla f(x_0)-\nabla f(x_1)\|^2)+1*(f(x_2)-f(x_1)+\nabla f(x_2)*(x_1-(x_2))+1/2*L*\|\nabla f(x_1)-\nabla f(x_2)\|^2)+-2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2 + (1/2 + sqrt(5)/2)^(-2)*(f(x_0)-f(x_2)+\nabla f(x_0)*(x_2-x_0)+1/2*L*\|\nabla f(x_2)-\nabla f(x_0)\|^2)+1 - 1/(1/2 + sqrt(5)/2)^2*(f(x_1)-f(x_2)+\nabla f(x_1)*(x_2-(x_1))+1/2*L*\|\nabla f(x_2)-\nabla f(x_1)\|^2)+2/(1/2 + sqrt(1 + 8*(1/2 + sqrt(5)/2)^2)/2)^2*(f(x_\star)-f(x_2)+\nabla f(x_\star)*(x_2-x_\star)+1/2*L*\|\nabla f(x_2)-\nabla f(x_\star)\|^2))\]
pf.pprint_str(
diff.repr_by_basis(ctx_prf, sympy_mode=True, resolve_parameters={"L": sp.S("L")})
)
\[\displaystyle \displaystyle 0\]
