Proximal Gradient Method Example#
Import the required libraries#
import pepflow as pf
import numpy as np
import sympy as sp
import matplotlib.pyplot as plt
import itertools
from IPython.display import display
Define the functions#
L = pf.Parameter("L")
f = pf.SmoothConvexFunction(is_basis=True, tags=["f"], L=L)
g = pf.ConvexFunction(is_basis=True, tags=["g"])
h = (f + g).add_tag("h")
Write a function to return the PEPContext associated with PGM#
def make_ctx_pgm(
ctx_name: str, N: int | sp.Integer, stepsize: pf.Parameter
) -> pf.PEPContext:
ctx_pgm = pf.PEPContext(ctx_name).set_as_current()
x = pf.Vector(is_basis=True, tags=["x_0"])
h.set_stationary_point("x_star")
for i in range(N):
y = x - 1 / L * f.grad(x)
y.add_tag(f"y_{i + 1}")
x = g.prox(y, 1 / L, tag=f"x_{i + 1}")
return ctx_pgm

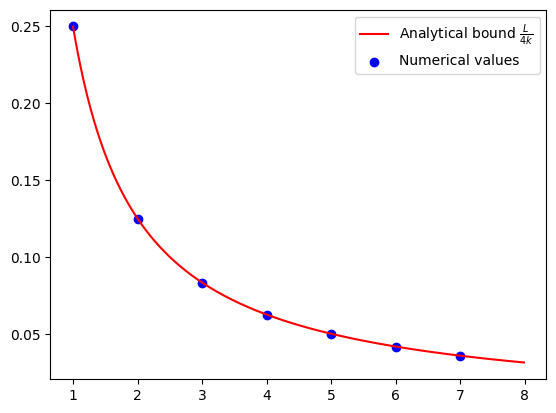

Numerical evidence of convergence of PGM#
N = 8
R = pf.Parameter("R")
L_value = 1
R_value = 1
ctx_plt = make_ctx_pgm(ctx_name="ctx_plt", N=N, stepsize=1 / L)
pb_plt = pf.PEPBuilder(ctx_plt)
pb_plt.add_initial_constraint(
((ctx_plt["x_0"] - ctx_plt["x_star"]) ** 2).le(R, name="initial_condition")
)
opt_values = []
for k in range(1, N):
x_k = ctx_plt[f"x_{k}"]
pb_plt.set_performance_metric(h(x_k) - h(ctx_plt["x_star"]))
result = pb_plt.solve(resolve_parameters={"L": L_value, "R": R_value})
opt_values.append(result.opt_value)
iters = np.arange(1, N)
cont_iters = np.arange(1, N, 0.01)
plt.plot(
cont_iters,
L_value / (4 * cont_iters),
"r-",
label="Analytical bound $\\frac{L}{4k}$",
)
plt.scatter(iters, opt_values, color="blue", marker="o", label="Numerical values")
plt.legend()
<matplotlib.legend.Legend at 0x7f517b773990>
Verification of convergence of PGM#
N = sp.S(2)
L_value = sp.S(1)
R_value = sp.S(1)
ctx_prf = make_ctx_pgm(ctx_name="ctx_prf", N=N, stepsize=1 / L)
pb_prf = pf.PEPBuilder(ctx_prf)
pb_prf.add_initial_constraint(
((ctx_prf["x_0"] - ctx_prf["x_star"]) ** 2).le(R, name="initial_condition")
)
pb_prf.set_performance_metric(h(ctx_prf[f"x_{N}"]) - h(ctx_prf["x_star"]))
result = pb_prf.solve(resolve_parameters={"L": L_value, "R": R_value})
print(result.opt_value)
# Dual variables associated with the interpolations conditions of f with no relaxation
lamb_dense = result.get_scalar_constraint_dual_value_in_numpy(f)
# Dual variables associated with the interpolations conditions of g with no relaxation
gamm_dense = result.get_scalar_constraint_dual_value_in_numpy(g)
0.1250001921749414
pf.launch_primal_interactive(
pb_prf, ctx_prf, resolve_parameters={"L": L_value, "R": R_value}
)
Dash app running on http://127.0.0.1:8050/
Solve the problem again with the found relaxation#
def tag_to_index(tag, N=N):
"""This is a function that takes in a tag of an iterate and returns its index.
We index "x_star" as "N+1 where N is the last iterate.
"""
# Split the string on "_" and get the index
if (idx := tag.split("_")[1]).isdigit():
return int(idx)
elif idx == "star":
return N + 1
relaxed_constraints = []
for tag_i in lamb_dense.row_names:
i = tag_to_index(tag_i)
if i == N + 1:
continue
for tag_j in lamb_dense.col_names:
j = tag_to_index(tag_j)
if i < N and i + 1 == j:
continue
relaxed_constraints.append(f"f:{tag_i},{tag_j}")
for tag_i in gamm_dense.row_names:
i = tag_to_index(tag_i)
if i == N + 1:
continue
for tag_j in gamm_dense.col_names:
j = tag_to_index(tag_j)
if i < N and i + 1 == j:
continue
relaxed_constraints.append(f"g:{tag_i},{tag_j}")
pb_prf.set_relaxed_constraints(relaxed_constraints)
Solve the PEP problem again with the relaxed constraints and store the results.
result = pb_prf.solve(resolve_parameters={"L": L_value, "R": R_value})
# Dual variable associated with the initial condition
tau_sol = result.dual_var_manager.dual_value("initial_condition")
# Dual variable associated with the interpolations conditions of f
lamb_sol = result.get_scalar_constraint_dual_value_in_numpy(f)
# Dual variable associated with the interpolations conditions of g
gamm_sol = result.get_scalar_constraint_dual_value_in_numpy(g)
# Dual variable associated with the Gram matrix G
S_sol = result.get_gram_dual_matrix()
Verify closed form expression of \(\lambda\)#
Print the values of \(\lambda\) obtained from the solver
lamb_sol.pprint()
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccc}
& x_0 & x_1 & x_2 & x_\star \\
\hline
x_0 & 0.0 & 0.25 & 0.0 & 0.0 \\x_1 & 0.0 & 0.0 & 0.667 & 0.0 \\x_2 & 0.0 & 0.0 & 0.0 & 0.0 \\x_\star & 0.25 & 0.417 & 0.333 & 0.0 \\
\end{array}
\end{split}\]
def lamb(tag_i, tag_j, N=N):
i = tag_to_index(tag_i)
j = tag_to_index(tag_j)
if i == N + 1: # Additional constraint 1 (between x_★)
if j == 0:
return lamb("x_0", "x_1")
elif j < N:
return lamb(f"x_{j}", f"x_{j + 1}") - lamb(f"x_{j - 1}", f"x_{j}")
elif j == N:
return 1 - lamb(f"x_{N - 1}", f"x_{N}")
if i < N and i + 1 == j: # Additional constraint 2 (consecutive)
return j / (2 * N + 1 - j)
return 0
lamb_cand = pf.pprint_labeled_matrix(
lamb, lamb_sol.row_names, lamb_sol.col_names, return_matrix=True
)
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccc}
& x_0 & x_1 & x_2 & x_\star \\
\hline
x_0 & 0.0 & 0.25 & 0.0 & 0.0 \\x_1 & 0.0 & 0.0 & 0.667 & 0.0 \\x_2 & 0.0 & 0.0 & 0.0 & 0.0 \\x_\star & 0.25 & 0.417 & 0.333 & 0.0 \\
\end{array}
\end{split}\]
Check whether our candidate of \(\lambda\) matches with solution
print(
"Did we guess the right closed form of lambda?",
np.allclose(lamb_cand, lamb_sol.matrix, atol=1e-4),
)
Did we guess the right closed form of lambda? True
Verify closed form expression of \(\gamma\)#
Print the values of \(\gamma\) obtained from the solver
gamm_sol.pprint()
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|ccc}
& x_1 & x_2 & x_\star \\
\hline
x_1 & 0.0 & 0.333 & 0.0 \\x_2 & 0.0 & 0.0 & 0.0 \\x_\star & 0.333 & 0.667 & 0.0 \\
\end{array}
\end{split}\]
def gamm(tag_i, tag_j, N=N):
i = tag_to_index(tag_i)
j = tag_to_index(tag_j)
if i == N + 1: # Additional constraint 1 (between x_★)
if 1 <= j <= N:
return 2 * N / ((2 * N + 1 - j) * (2 * N - j))
if i < N and i + 1 == j: # Additional constraint 2 (consecutive)
return (j - 1) / (2 * N + 1 - j)
return 0
gamm_cand = pf.pprint_labeled_matrix(
gamm, gamm_sol.row_names, gamm_sol.col_names, return_matrix=True
)
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|ccc}
& x_1 & x_2 & x_\star \\
\hline
x_1 & 0.0 & 0.333 & 0.0 \\x_2 & 0.0 & 0.0 & 0.0 \\x_\star & 0.333 & 0.667 & 0.0 \\
\end{array}
\end{split}\]
print(
"Did we guess the right closed form of lambda?",
np.allclose(gamm_cand, gamm_sol.matrix, atol=1e-4),
)
Did we guess the right closed form of lambda? True
Verify closed form expression \(S\)#
Create an ExpressionManager to translate \(x_i\), \(f(x_i)\), and \(\nabla f(x_i)\) into a basis representation
pm = pf.ExpressionManager(ctx_prf, resolve_parameters={"L": L_value, "R": R_value})
Print the values of \(S\) obtained from the solver
S_sol.pprint()
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccccccc}
& x_0 & x_\star & \nabla f(x_\star) & \nabla f(x_0) & \nabla g(x_1) & \nabla f(x_1) & \nabla g(x_2) & \nabla f(x_2) \\
\hline
x_0 & 0.125 & -0.125 & 0.0 & -0.125 & -0.167 & -0.208 & -0.333 & -0.167 \\x_\star & -0.125 & 0.125 & -0.0 & 0.125 & 0.167 & 0.208 & 0.333 & 0.167 \\\nabla f(x_\star) & 0.0 & -0.0 & 0.5 & -0.125 & 0.0 & -0.208 & -0.0 & -0.167 \\\nabla f(x_0) & -0.125 & 0.125 & -0.125 & 0.25 & 0.167 & 0.208 & 0.333 & 0.167 \\\nabla g(x_1) & -0.167 & 0.167 & 0.0 & 0.167 & 0.333 & 0.333 & 0.333 & 0.167 \\\nabla f(x_1) & -0.208 & 0.208 & -0.208 & 0.208 & 0.333 & 0.667 & 0.5 & 0.167 \\\nabla g(x_2) & -0.333 & 0.333 & -0.0 & 0.333 & 0.333 & 0.5 & 1.0 & 0.5 \\\nabla f(x_2) & -0.167 & 0.167 & -0.167 & 0.167 & 0.167 & 0.167 & 0.5 & 0.5 \\
\end{array}
\end{split}\]
Subtract the decomposed closed-form expressions
x = ctx_prf.tracked_point(f)
S_guess1 = sum(
N
/ ((2 * N + 1 - i) * (2 * N - i) * L)
* (
i / (2 * N) * f.grad(x[i])
+ (2 * N - i) / (2 * N) * f.grad(x[i - 1])
- f.grad(x[N + 1])
)
** 2
for i in range(1, N + 1)
)
remainder1 = S_sol.matrix - pm.eval_scalar(S_guess1).inner_prod_coords
pf.pprint_labeled_matrix(remainder1, S_sol.row_names, S_sol.col_names)
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccccccc}
& x_0 & x_\star & \nabla f(x_\star) & \nabla f(x_0) & \nabla g(x_1) & \nabla f(x_1) & \nabla g(x_2) & \nabla f(x_2) \\
\hline
x_0 & 0.125 & -0.125 & 0.0 & -0.125 & -0.167 & -0.208 & -0.333 & -0.167 \\x_\star & -0.125 & 0.125 & -0.0 & 0.125 & 0.167 & 0.208 & 0.333 & 0.167 \\\nabla f(x_\star) & 0.0 & -0.0 & 0.0 & 0.0 & 0.0 & 0.0 & -0.0 & -0.0 \\\nabla f(x_0) & -0.125 & 0.125 & 0.0 & 0.156 & 0.167 & 0.177 & 0.333 & 0.167 \\\nabla g(x_1) & -0.167 & 0.167 & 0.0 & 0.167 & 0.333 & 0.333 & 0.333 & 0.167 \\\nabla f(x_1) & -0.208 & 0.208 & 0.0 & 0.177 & 0.333 & 0.573 & 0.5 & 0.083 \\\nabla g(x_2) & -0.333 & 0.333 & -0.0 & 0.333 & 0.333 & 0.5 & 1.0 & 0.5 \\\nabla f(x_2) & -0.167 & 0.167 & -0.0 & 0.167 & 0.167 & 0.083 & 0.5 & 0.417 \\
\end{array}
\end{split}\]
S_guess2 = sum(
(
(i - 1) / (2 * N - i) * (2 * N + 2) / (2 * N + 1)
+ 1 / (2 * N - i) ** 2 * 2 * N / (2 * N + 1)
)
/ (2 * L)
* (f.grad(x[i - 1]) + g.grad(x[i]) - L / (2 * N + 1 - i) * (x[i - 1] - x[N + 1]))
** 2
for i in range(1, N + 1)
)
remainder2 = remainder1 - pm.eval_scalar(S_guess2).inner_prod_coords
pf.pprint_labeled_matrix(remainder2, S_sol.row_names, S_sol.col_names)
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccccccc}
& x_0 & x_\star & \nabla f(x_\star) & \nabla f(x_0) & \nabla g(x_1) & \nabla f(x_1) & \nabla g(x_2) & \nabla f(x_2) \\
\hline
x_0 & 0.078 & -0.078 & 0.0 & -0.069 & -0.111 & -0.075 & -0.2 & -0.167 \\x_\star & -0.078 & 0.078 & -0.0 & 0.069 & 0.111 & 0.075 & 0.2 & 0.167 \\\nabla f(x_\star) & 0.0 & -0.0 & 0.0 & 0.0 & 0.0 & 0.0 & -0.0 & -0.0 \\\nabla f(x_0) & -0.069 & 0.069 & 0.0 & 0.067 & 0.078 & 0.044 & 0.2 & 0.167 \\\nabla g(x_1) & -0.111 & 0.111 & 0.0 & 0.078 & 0.244 & 0.2 & 0.2 & 0.167 \\\nabla f(x_1) & -0.075 & 0.075 & 0.0 & 0.044 & 0.2 & 0.173 & 0.1 & 0.083 \\\nabla g(x_2) & -0.2 & 0.2 & -0.0 & 0.2 & 0.2 & 0.1 & 0.6 & 0.5 \\\nabla f(x_2) & -0.167 & 0.167 & -0.0 & 0.167 & 0.167 & 0.083 & 0.5 & 0.417 \\
\end{array}
\end{split}\]
S_guess3 = sum(
i
/ (2 * N + 1 - i)
* 2
* N
/ (2 * N + 1)
/ (2 * L)
* (
(2 * N + 1) / (2 * N) * (f.grad(x[i]) + g.grad(x[i]))
- 1 / (2 * N) * (f.grad(x[i - 1]) + g.grad(x[i]))
- L / (2 * N - i) * (x[i] - x[N + 1])
)
** 2
for i in range(1, N + 1)
)
remainder3 = remainder2 - pm.eval_scalar(S_guess3).inner_prod_coords
pf.pprint_labeled_matrix(remainder3, S_sol.row_names, S_sol.col_names)
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccccccc}
& x_0 & x_\star & \nabla f(x_\star) & \nabla f(x_0) & \nabla g(x_1) & \nabla f(x_1) & \nabla g(x_2) & \nabla f(x_2) \\
\hline
x_0 & -0.0 & 0.0 & 0.0 & 0.0 & 0.0 & 0.0 & -0.0 & -0.0 \\x_\star & 0.0 & -0.0 & -0.0 & -0.0 & -0.0 & -0.0 & 0.0 & 0.0 \\\nabla f(x_\star) & 0.0 & -0.0 & 0.0 & 0.0 & 0.0 & 0.0 & -0.0 & -0.0 \\\nabla f(x_0) & 0.0 & -0.0 & 0.0 & -0.0 & -0.0 & -0.0 & 0.0 & 0.0 \\\nabla g(x_1) & 0.0 & -0.0 & 0.0 & -0.0 & -0.0 & -0.0 & 0.0 & 0.0 \\\nabla f(x_1) & 0.0 & -0.0 & 0.0 & -0.0 & -0.0 & -0.0 & 0.0 & 0.0 \\\nabla g(x_2) & -0.0 & 0.0 & -0.0 & 0.0 & 0.0 & 0.0 & -0.0 & -0.0 \\\nabla f(x_2) & -0.0 & 0.0 & -0.0 & 0.0 & 0.0 & 0.0 & -0.0 & -0.0 \\
\end{array}
\end{split}\]
Check whether our candidate of \(S\) matches with solution
S_guess = S_guess1 + S_guess2 + S_guess3
S_guess_eval = pm.eval_scalar(S_guess).inner_prod_coords
pf.pprint_labeled_matrix(S_guess_eval, S_sol.row_names, S_sol.col_names)
\[\begin{split}\displaystyle \displaystyle
\begin{array}{c|cccccccc}
& x_0 & x_\star & \nabla f(x_\star) & \nabla f(x_0) & \nabla g(x_1) & \nabla f(x_1) & \nabla g(x_2) & \nabla f(x_2) \\
\hline
x_0 & 0.125 & -0.125 & 0.0 & -0.125 & -0.167 & -0.208 & -0.333 & -0.167 \\x_\star & -0.125 & 0.125 & 0.0 & 0.125 & 0.167 & 0.208 & 0.333 & 0.167 \\\nabla f(x_\star) & 0.0 & 0.0 & 0.5 & -0.125 & 0.0 & -0.208 & 0.0 & -0.167 \\\nabla f(x_0) & -0.125 & 0.125 & -0.125 & 0.25 & 0.167 & 0.208 & 0.333 & 0.167 \\\nabla g(x_1) & -0.167 & 0.167 & 0.0 & 0.167 & 0.333 & 0.333 & 0.333 & 0.167 \\\nabla f(x_1) & -0.208 & 0.208 & -0.208 & 0.208 & 0.333 & 0.667 & 0.5 & 0.167 \\\nabla g(x_2) & -0.333 & 0.333 & 0.0 & 0.333 & 0.333 & 0.5 & 1.0 & 0.5 \\\nabla f(x_2) & -0.167 & 0.167 & -0.167 & 0.167 & 0.167 & 0.167 & 0.5 & 0.5 \\
\end{array}
\end{split}\]
print(
"Did we guess the right closed form of S?",
np.allclose(S_guess_eval, S_sol.matrix, atol=1e-4),
)
Did we guess the right closed form of S? True
Symbolic calculation#
Assemble the RHS of the proof.
interp_scalar_sum = pf.Scalar.zero()
for x_i, x_j in itertools.product(ctx_prf.tracked_point(f), ctx_prf.tracked_point(f)):
if lamb(x_i.tag, x_j.tag) != 0:
interp_scalar_sum += lamb(x_i.tag, x_j.tag) * f.interp_ineq(x_i.tag, x_j.tag)
display(interp_scalar_sum)
\[\displaystyle 0+1/4*(f(x_1)-f(x_0)+\nabla f(x_1)*(x_0-(x_1))+1/2*L*\|\nabla f(x_0)-\nabla f(x_1)\|^2)+2/3*(f(x_2)-f(x_1)+\nabla f(x_2)*(x_1-(x_2))+1/2*L*\|\nabla f(x_1)-\nabla f(x_2)\|^2)+1/4*(f(x_0)-f(x_\star)+\nabla f(x_0)*(x_\star-x_0)+1/2*L*\|\nabla f(x_\star)-\nabla f(x_0)\|^2)+5/12*(f(x_1)-f(x_\star)+\nabla f(x_1)*(x_\star-(x_1))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_1)\|^2)+1/3*(f(x_2)-f(x_\star)+\nabla f(x_2)*(x_\star-(x_2))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_2)\|^2)\]
for x_i, x_j in itertools.product(ctx_prf.tracked_point(g), ctx_prf.tracked_point(g)):
if gamm(x_i.tag, x_j.tag) != 0:
interp_scalar_sum += gamm(x_i.tag, x_j.tag) * g.interp_ineq(x_i.tag, x_j.tag)
display(interp_scalar_sum)
\[\displaystyle 0+1/4*(f(x_1)-f(x_0)+\nabla f(x_1)*(x_0-(x_1))+1/2*L*\|\nabla f(x_0)-\nabla f(x_1)\|^2)+2/3*(f(x_2)-f(x_1)+\nabla f(x_2)*(x_1-(x_2))+1/2*L*\|\nabla f(x_1)-\nabla f(x_2)\|^2)+1/4*(f(x_0)-f(x_\star)+\nabla f(x_0)*(x_\star-x_0)+1/2*L*\|\nabla f(x_\star)-\nabla f(x_0)\|^2)+5/12*(f(x_1)-f(x_\star)+\nabla f(x_1)*(x_\star-(x_1))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_1)\|^2)+1/3*(f(x_2)-f(x_\star)+\nabla f(x_2)*(x_\star-(x_2))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_2)\|^2)+1/3*(g(x_2)-g(x_1)+\nabla g(x_2)*(x_1-(x_2)))+1/3*(g(x_1)-g(x_\star)+\nabla g(x_1)*(x_\star-(x_1)))+2/3*(g(x_2)-g(x_\star)+\nabla g(x_2)*(x_\star-(x_2)))\]
RHS = interp_scalar_sum - S_guess
display(RHS)
\[\displaystyle 0+1/4*(f(x_1)-f(x_0)+\nabla f(x_1)*(x_0-(x_1))+1/2*L*\|\nabla f(x_0)-\nabla f(x_1)\|^2)+2/3*(f(x_2)-f(x_1)+\nabla f(x_2)*(x_1-(x_2))+1/2*L*\|\nabla f(x_1)-\nabla f(x_2)\|^2)+1/4*(f(x_0)-f(x_\star)+\nabla f(x_0)*(x_\star-x_0)+1/2*L*\|\nabla f(x_\star)-\nabla f(x_0)\|^2)+5/12*(f(x_1)-f(x_\star)+\nabla f(x_1)*(x_\star-(x_1))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_1)\|^2)+1/3*(f(x_2)-f(x_\star)+\nabla f(x_2)*(x_\star-(x_2))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_2)\|^2)+1/3*(g(x_2)-g(x_1)+\nabla g(x_2)*(x_1-(x_2)))+1/3*(g(x_1)-g(x_\star)+\nabla g(x_1)*(x_\star-(x_1)))+2/3*(g(x_2)-g(x_\star)+\nabla g(x_2)*(x_\star-(x_2)))-(0+2/12*L*\|1/4*\nabla f(x_1)+3/4*\nabla f(x_0)-\nabla f(x_\star)\|^2+2/6*L*\|1/2*\nabla f(x_2)+1/2*\nabla f(x_1)-\nabla f(x_\star)\|^2+0+4/45/2*L*\|\nabla f(x_0)+\nabla g(x_1)-L/4*(x_0-x_\star)\|^2+4/5/2*L*\|\nabla f(x_1)+\nabla g(x_2)-L/3*(x_1-x_\star)\|^2+0+1/5/2*L*\|5/4*(\nabla f(x_1)+\nabla g(x_1))-1/4*(\nabla f(x_0)+\nabla g(x_1))-L/3*(x_1-x_\star)\|^2+8/15/2*L*\|5/4*(\nabla f(x_2)+\nabla g(x_2))-1/4*(\nabla f(x_1)+\nabla g(x_2))-L/2*(x_2-x_\star)\|^2)\]
Assemble the LHS of the proof
LHS = h(x[N]) - h(ctx_prf["x_star"]) - L / (4 * N) * (x[0] - ctx_prf["x_star"]) ** 2
display(LHS)
\[\displaystyle f(x_2)+g(x_2)-(f(x_\star)+g(x_\star))-L/8*\|x_0-x_\star\|^2\]
diff = LHS - RHS
display(diff)
\[\displaystyle f(x_2)+g(x_2)-(f(x_\star)+g(x_\star))-L/8*\|x_0-x_\star\|^2-(0+1/4*(f(x_1)-f(x_0)+\nabla f(x_1)*(x_0-(x_1))+1/2*L*\|\nabla f(x_0)-\nabla f(x_1)\|^2)+2/3*(f(x_2)-f(x_1)+\nabla f(x_2)*(x_1-(x_2))+1/2*L*\|\nabla f(x_1)-\nabla f(x_2)\|^2)+1/4*(f(x_0)-f(x_\star)+\nabla f(x_0)*(x_\star-x_0)+1/2*L*\|\nabla f(x_\star)-\nabla f(x_0)\|^2)+5/12*(f(x_1)-f(x_\star)+\nabla f(x_1)*(x_\star-(x_1))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_1)\|^2)+1/3*(f(x_2)-f(x_\star)+\nabla f(x_2)*(x_\star-(x_2))+1/2*L*\|\nabla f(x_\star)-\nabla f(x_2)\|^2)+1/3*(g(x_2)-g(x_1)+\nabla g(x_2)*(x_1-(x_2)))+1/3*(g(x_1)-g(x_\star)+\nabla g(x_1)*(x_\star-(x_1)))+2/3*(g(x_2)-g(x_\star)+\nabla g(x_2)*(x_\star-(x_2)))-(0+2/12*L*\|1/4*\nabla f(x_1)+3/4*\nabla f(x_0)-\nabla f(x_\star)\|^2+2/6*L*\|1/2*\nabla f(x_2)+1/2*\nabla f(x_1)-\nabla f(x_\star)\|^2+0+4/45/2*L*\|\nabla f(x_0)+\nabla g(x_1)-L/4*(x_0-x_\star)\|^2+4/5/2*L*\|\nabla f(x_1)+\nabla g(x_2)-L/3*(x_1-x_\star)\|^2+0+1/5/2*L*\|5/4*(\nabla f(x_1)+\nabla g(x_1))-1/4*(\nabla f(x_0)+\nabla g(x_1))-L/3*(x_1-x_\star)\|^2+8/15/2*L*\|5/4*(\nabla f(x_2)+\nabla g(x_2))-1/4*(\nabla f(x_1)+\nabla g(x_2))-L/2*(x_2-x_\star)\|^2))\]
pf.pprint_str(
diff.repr_by_basis(ctx_prf, sympy_mode=True, resolve_parameters={"L": sp.S("L")})
)
\[\displaystyle \displaystyle 0\]
With verified closed form expression, we have verified the below for fixed \(N\)#
\[\begin{align*}
&f(x_N) + g(x_N) - f(x_\star) - g(x_\star) - \frac{L}{4N} \|x_0 - x_\star\|^2 \\
&= \sum_{i=1}^{N} \frac{i}{2N + 1 - i}
\left(
f(x_i) - f(x_{i-1})
+ \langle \nabla f(x_{i-1}), x_{i-1} - x_i \rangle
+ \frac{1}{2L} \|\nabla f(x_i) - \nabla f(x_{i-1})\|^2
\right)
\\
&\quad + \frac{1}{N+1}
\left(
f(x_N) - f(x_\star)
+ \langle \nabla f(x_N), x_\star - x_N \rangle
+ \frac{1}{2L} \|\nabla f(x_N) - \nabla f(x_\star)\|^2
\right)
\\
&\quad + \sum_{i=1}^{N-1}
\frac{2N + 1}{(2N + 1 - i)(2N - i)}
\left(
f(x_i) - f(x_\star)
+ \langle \nabla f(x_i), x_\star - x_i \rangle
+ \frac{1}{2L} \|\nabla f(x_i) - \nabla f(x_\star)\|^2
\right)
\\
&\quad + \frac{1}{2N}
\left(
f(x_0) - f(x_\star)
+ \langle \nabla f(x_0), x_\star - x_0 \rangle
+ \frac{1}{2L} \|\nabla f(x_0) - \nabla f(x_\star)\|^2
\right)
\\
&\quad
+ \sum_{i=1}^{N}
\frac{i - 1}{2N + 1 - i}
\left(
g(x_i) - g(x_{i-1})
+ \langle \widetilde{\nabla} g(x_i), x_{i-1} - x_i \rangle
\right)
\\
&\quad
+ \sum_{i=1}^{N}
\frac{2N}{(2N + 1 - i)(2N - i)}
\left(
g(x_i) - g(x_\star)
+ \langle \widetilde{\nabla} g(x_i), x_\star - x_i \rangle
\right)
\\
&\quad - \sum_{i=1}^{N} \frac{2N}{(2N+1-i)(2N-i)} \frac{1}{2L}
\left\|
\nabla f(x_*) - \frac{i}{2N} \nabla f(x_i) - \frac{2N-i}{2N} \nabla f(x_{i-1})
\right\|^2 \\
&\quad - \sum_{i=1}^{N} \frac{i}{2N+1-i} \frac{2N}{2N+1} \frac{1}{2L}
\left\|
\frac{2N+1}{2N} (\nabla f(x_i) + \widetilde{\nabla} g(x_i)) - \frac{1}{2N} (\nabla f(x_{i-1}) + \widetilde{\nabla} g(x_i)) - \frac{L}{2N-i} (x_i - x_*)
\right\|^2 \\
&\quad - \sum_{i=1}^{N} \left(
\frac{i-1}{2N-i} \frac{2N+2}{2N+1} + \frac{1}{(2N-i)^2} \frac{2N}{2N+1}
\right) \frac{1}{2L}
\left\|
\nabla f(x_{i-1}) + \widetilde{\nabla} g(x_i) - \frac{L}{2N+1-i} (x_{i-1}-x_*)
\right\|^2
\end{align*}\]
